All-Atom Contacts |
Clashscore, all atoms: | 0.88 | 100th percentile* (N=576, 2.10Å ± 0.25Å) | |
Clashscore is the number of serious steric overlaps (> 0.4 Å) per 1000 atoms. | ||||
Protein Geometry |
Poor rotamers | 9 | 2.91% | Goal: <1% |
Ramachandran outliers | 2 | 0.58% | Goal: <0.05% | |
Ramachandran favored | 327 | 95.61% | Goal: >98% | |
MolProbity score^ | 1.43 | 99th percentile* (N=11758, 2.10Å ± 0.25Å) | ||
Cβ deviations >0.25Å | 1 | 0.30% | Goal: 0 | |
Bad backbone bonds: | 0 / 1389 | 0.00% | Goal: 0% | |
Bad backbone angles: | 1 / 1731 | 0.06% | Goal: <0.1% |
For full MolProbity multichart with per-residue violation information, see here

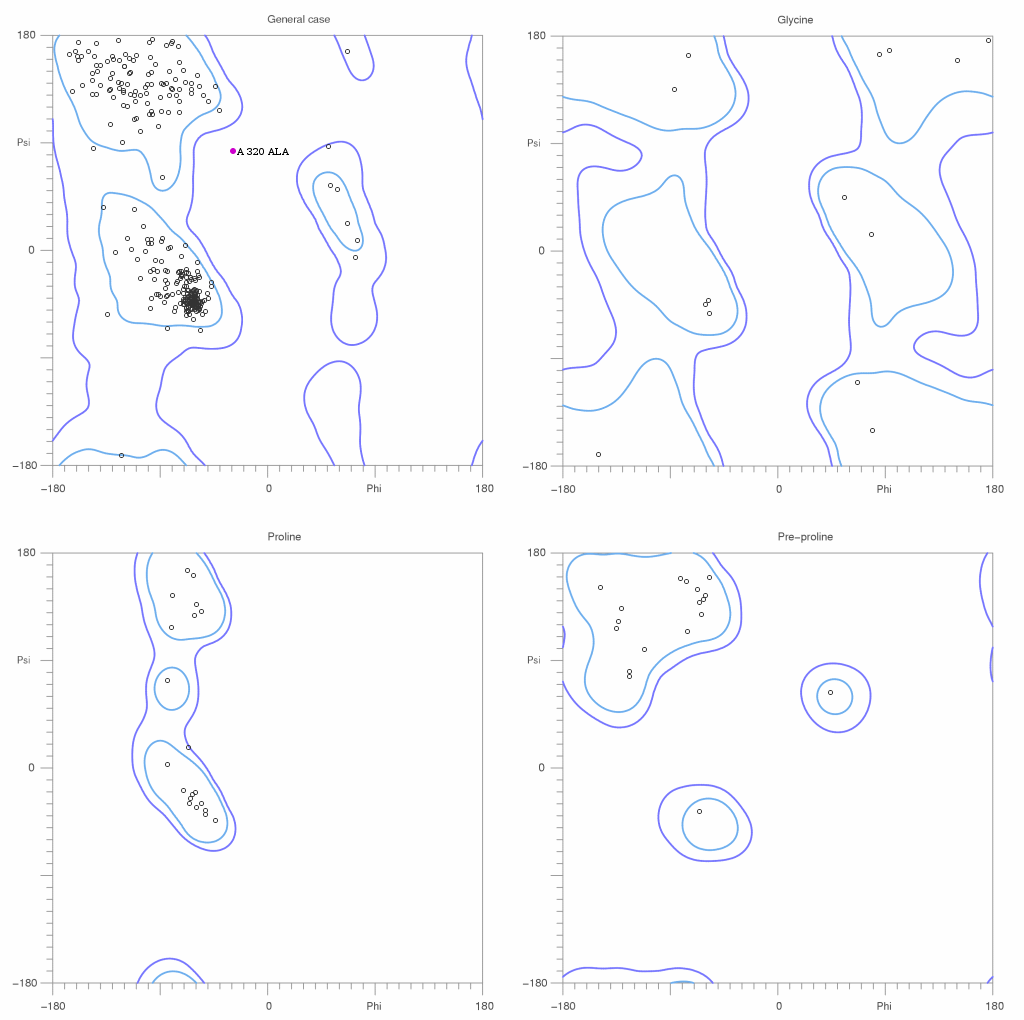

342 residues were evaluated in total for general, glycine, proline, and pre-pro. 97.08% of all residues were in favored (98%) regions. (332 residues) 99.71% of all residues were in allowed (>99.8%) regions. (341 residues) There were 1 outliers: A 320 ALA: (phi,psi) = (-27.81, 82.11)
